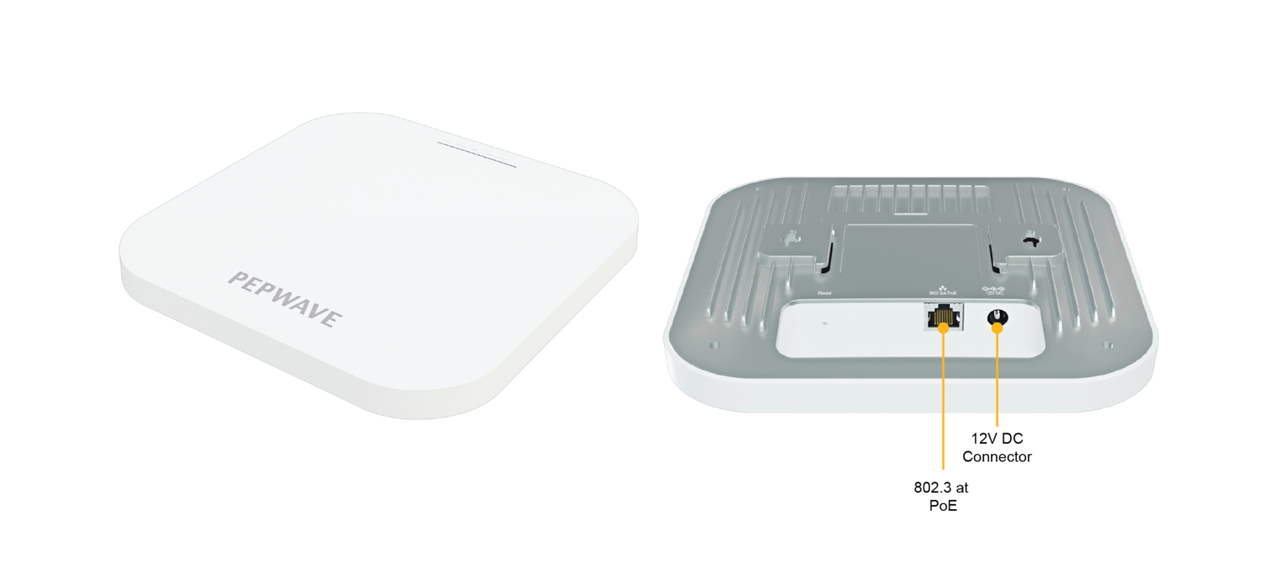

Pepwave AP One AX | 2.4ghz/5ghz AX/B/G/N/ Wireless Access Point

Pepwave's AP One AX supports WIFI 6! Pair the powerful AP One AX wireless access point with a mobile router to provide additional wireless coverage to your home, business, RV or boat and / or additional functionality (like 5Ghz wifi). With a CAT5e/CAT6 network cable wired to the access point, POE (Power of Internet) can be used to power the AP One AC Mini Access Point.

The Peplink AP One AX is a powerful, enterprise grade router - see the full set of features below. You can manage your wireless setup using the optional Incontrol2 Cloud Management Platform which is complimentary for the first year.

Manage Centrally, No Extra Hardware Needed - Each AP One AX comes equipped with InControl central management. View the health and data usage of your network from any web browser. Centrally manage your network’s SSID and radio settings from a single pane of glass. Use the searchable event log to quickly diagnose your entire network.

Turnkey or Custom Captive Portals - Customize your captive portal as little or as much as you would like. Right out of the box, it includes a captive portal ready for immediate use. For a more branded user experience, you can edit every aspect of the captive portal using InControl.

Simply Better Wi-Fi - Wi-Fi 6 - Faster, Better This technology is 45% faster than Wi-Fi 5, has 4x more device capacity, and consumes less power for connected devices.

Enterprise-Grade Fast Roaming - This device supports 802.11k, v, and r, providing users with a more seamless roaming experience between access points.

Seamless Peplink SD-WAN Integration - The AP One AX works seamlessly with other services in the Peplink ecosystem, providing unique network capabilities, unmatched network flexibility and ease of use.

InControl Central Management - Monitor network health on a single dashboard. Push configuration profiles on multiple devices at once. Remotely access the Web Admin of any device.

Balance/MAX/FusionHub - Provides unbreakable connectivity by combining multiple WANs. Works with InControl to centralize VLAN, firewall, and outbound policy.

SD-Switch - Works with InControl to remotely configure and activate PoE ports. Monitor power consumption.

AP One - Works with InControl to centralize SSIDs, radio settings, and deliver captive portals.

Features:

• Product Code - APO-AX
• EthernetPort - 1x 2.5 Multigigabit Ethernet
• Wi-Fi Standard - 1x 2.4Ghz 802.11b/g/n/ax 1x 5Ghz 802.11a/n/ac/ax
• Data Rates - 4X4 MU-MIMO 2.4 GHz: up to 1148 Mbps 5 GHz: up to 2400 Mbps
• Channel Width - 20/40/60/80 MHz
• Recommended Concurrent Users Per Radio - 256
• SSID Per Radio - 16
• Transmit Power - 2412 – 2472 MHz: 25dBm 5180 – 5825 MHz: 25dBm
• Included Antenna - Built-in Omni Antenna Antenna gain: 5dBi for 2.4GHz, 5dBi for 5GHz
• Enclosure - Plenum-rated, Indoor Plastic
• Weight - 1.73 pounds 785 grams
• Dimensions - 8.1 x 8.1 x 1.3 inches 205 x 205 x 32 mm
• Power Input - DC Jack: 12V DC AC Adapter: AC Input 100V − 240V, DC Output 12V, 2.5A* 802.3 at PoE (Injector Not Included)
• Power Consumption - 23W (max.)
• Operating Temperature - 32° - 104°F 0° - 40°C
• Humidity - 15% – 95% (non-condensing)
• Certifications - FCC, CE, RoHS
• Warranty - 1-Year Limited Warranty

Package Content:

• AP One AX
• Ceiling Mount Base (9/16” T-Rail)
• Ceiling Mount Base (15/16” T-Rail)
• Mounting Screw Set
• This access point does not come with a power supply. A PoE injector, switch or optional 12V DC power supply is required.

About the Optional Additional Warranty & Licenses:

EssetialCare

All Peplink products come with a one-year standard warranty. This warranty period can be extended for an additional 2 years. The EssentialCare extended warranty includes:

• Access to InControl 2
• Firmware upgrades
• Warranty protection.
• Non-transferable and non-refundable based on manufacturer policies

InControl 2 (IC2)

InControl2 access is included with your standard one-year warranty on your device and you can add additional years. InControl is Peplink's cloud-based endpoint management system. When connected to your devices, it aggregates data to generate useful reports on all aspects of your network. On a single screen, you can push configurations to any and all of your endpoints. If you need to dig deeper, you can remotely access the web admin of any device on your network. Using InControl, you can save configuration time, minimize truck rolls, stay on top of the status of your network, and proactively resolve any emerging problems with speed and precision.
